## rotational moment of inertia

### [How to Calculate Mass Moment of Inertia when Sizing Torque Limiters](https://blog.rw-america.com/blog/bid/371136/How-to-Calculate-Mass-Moment-of-Inertia-when-Sizing-Torque-Limiters)

Jan 22, 2014 11:16:00 PM

[![Technical Book on Safety and Overload Couplings](https://hubspot-no-cache-eu1-prod.s3.amazonaws.com/cta/default/237991/2a8d41ea-495b-408e-bc68-ecd2dc2a67c2.png)](https://hubspot-cta-redirect-eu1-prod.s3.amazonaws.com/cta/redirect/237991/2a8d41ea-495b-408e-bc68-ecd2dc2a67c2)

**CALCULATING MOMENT OF INERTIA**

As a manufacturer of [safety couplings](http://www.rw-america.com/products/torque_limiters/) and [torque limiters](http://www.rw-america.com/products/torque_limiters/), we are often asked to provide some assistance in calculating the moment of inertia of various loads, in order to aid in selecting the appropriate disengagement torque settings.  Once the driving and driven inertia values are known, acceleratin and deceleration rates are used to estimate safety coupling torque adjustment ranges.

Moment of inertia can be described as a mechanical property of the mass of a solid object that quantifies the required torque needed to change the angular velocity of the object about an axis. This inertia is also known as the mass moment of inertia, first moment, or, rotational inertia.  This moment can be used to calculate how much energy it takes to get an object rotating which is especially useful in mechanical drive lines with motors and engines.  When sizing a torque limiter or safety coupling, it is important that the disengagement torque value be set to a value higher than what is required to accelerate the load up to speed.  It is also helpful to be aware of the torque levels resulting from abruptly decelerating a rotating mass, which is where torque limiters and safety couplings come into play, protecting driveline components from the excessive torques resulting from an unintended blockage stopping a machine too rapidly.  Moment of inertia often denoted as (*I*) is a unit of mass multiplied by area squared (*M\*A2*). In the case of a two inch diameter rotating shaft with a mass of one hundred pounds, moment of inertia can be calculated per the example below.

![1 22 equation 1](https://blog.rw-america.com/hs-fs/file-470180678-png/images/1-22_equation_1.png?width=307&height=61&name=1-22_equation_1.png)

Calculating the moment of inertia for a 0.1 meter diameter shaft with a mass of 1000 kg is done in the exact same manner.

![0.1m diameter 1000 kg shaft inertia](https://blog.rw-america.com/hs-fs/file-472678572-png/images/1-22_equation_2.png?width=305&height=61&name=1-22_equation_2.png)

Finding the moment of inertia for a tube or hollow shaft is very similar. In the next example, we will find the value for a 0.5 meter outside diameter tube with a 0.3 meter inside diameter. The mass of the tube is 500 kg.

![moment of inertia of tube](https://blog.rw-america.com/hs-fs/file-474344995-png/images/1-22_equation_3.png?width=307&height=61&name=1-22_equation_3.png)

The calculation for a moment of a square or rectangular shaft or shape can also be useful. In this example, the moment of a one inch by one inch square shaft with a mass of 1000 pounds will be found.

![moment of inertia of a square shaft](https://blog.rw-america.com/hs-fs/file-471363561-png/images/1-22_equation_4.png?width=307&height=61&name=1-22_equation_4.png)

The examples above are handy for calculations involving sizing of mechanical drive components, and not just [safety couplings](http://www.rw-america.com/products/torque_limiters/). Inertia ratios of rotating shafts and motor rotors are critical to proper operation of many drives. These calculations are all done about the axis of typical shaft rotation and cannot be used for a different axis.  It is important to note that this is the mass moment and the calculation gives us a property of mass at a distance from the axis of rotation. As with all rotating objects, the moment increases exponentially as a mass moves away from the axis of rotation.  These basic facts of physics are critical for machine design and have been a primary guiding principle for centuries of mechanical engineering.

[![Technical Book on Safety and Overload Couplings](https://hubspot-no-cache-eu1-prod.s3.amazonaws.com/cta/default/237991/2a8d41ea-495b-408e-bc68-ecd2dc2a67c2.png)](https://hubspot-cta-redirect-eu1-prod.s3.amazonaws.com/cta/redirect/237991/2a8d41ea-495b-408e-bc68-ecd2dc2a67c2)

[Niilo Nykanen](https://blog.rw-america.com/blog/author/niilo-nykanen)

[Read More](https://blog.rw-america.com/blog/bid/371136/How-to-Calculate-Mass-Moment-of-Inertia-when-Sizing-Torque-Limiters)

### [Basics of Angular Acceleration and Rotational Moment of Inertia](https://blog.rw-america.com/blog/bid/304231/Basics-of-Angular-Acceleration-and-Rotational-Moment-of-Inertia)

Jun 14, 2013 9:22:00 PM

 [![Bellows Coupling White Paper](https://hubspot-no-cache-eu1-prod.s3.amazonaws.com/cta/default/237991/340851c5-fb60-4fdf-8e49-4792fddbc865.png)](https://hubspot-cta-redirect-eu1-prod.s3.amazonaws.com/cta/redirect/237991/340851c5-fb60-4fdf-8e49-4792fddbc865)

#### **Angular Acceleration and Moment of Inertia in Machine Design**

As a provider of [flexible drive couplings](http://www.rw-america.com/)and [ball detent safety clutches](https://blog.rw-america.com/blog/bid/261935/Basic-Application-of-Ball-Detent-Torque-Limiters), we are often asked to provide a bit of assistance in calculating application torques, especially for customers looking to retrofit existing equipment.  In order to aid in the process of estimating torques, we'll review one of the basic calculations used to estimate the torque required to accelerate a rotating mass to a certain speed over a given time.

Angular acceleration (α) can be defined as angular velocity (ω) divided by acceleration time (t). Alternatively, pi (π) multiplied by drive speed (n) divided by acceleration time (t) multiplied by 30. This equation yields the standard angular acceleration SI unit of radians per second squared (Rad/sec^2). The equation below defines the rate of change of angular velocity.

 ![equation 1](https://blog.rw-america.com/hs-fs/file-68265554-png/images/equation_1.png?width=201&height=150&name=equation_1.png)

ω = angular velocity in the standard SI unit of radians per second (Rad/sec), 1 radian = 57.3 degrees

t = acceleration time in seconds

π = 3.1416

n = drive speed in revolutions per minute RPM

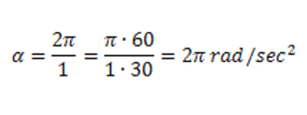

In the next example, angular velocity will be calculated for acceleration from 0 to 60 RPM in one second. Note that 2π radians per second = 60 RPM.

 ![calculation 2](https://blog.rw-america.com/hs-fs/file-68319750-png/images/calculation_2.png?width=307&height=115&name=calculation_2.png)

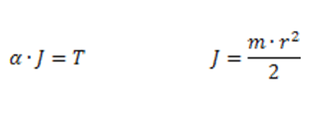

This calculation is very useful in machine design because angular acceleration multiplied by rotational moment of inertia equals torque.  Keep in mind that the exact moment of inertia can be difficult to calculate based on complex geometries in real drive lines, and other variables such as friction are not considered in the next calculation.  Nonetheless it is still very helpful in approximating torque requirements or establishing baseline minimum values for component sizing purposes.

 ![calculation 3](https://blog.rw-america.com/hs-fs/file-68329333-png/images/calculation_3.png?width=315&height=117&name=calculation_3.png)

J = moment of inertia in kg∙m2

T= torque in N∙m

N= force in Newtons

kg= mass in kilograms

m= lever arm radius in meters



In the final example below we will use the angular acceleration we found above to calculate torque on a flywheel with a 1 meter radius and 1000 kg mass.

 ![calculation 4](https://blog.rw-america.com/hs-fs/file-68336248-png/images/calculation_4.png?width=251&height=93&name=calculation_4.png)

As we can see, if a flywheel with a 1 meter radius and 1000 kg mass were to be accelerated to 60 RPM in one second, it would require 3141.59 Newton meters of input torque.





I hope you found this refresher on calculating angular acceleration to be helpful.  If you have questions pertinent to the sizing and application of [shaft couplings](http://www.rw-america.com) or [safety clutches](http://www.rw-america.com/products/torque_limiters/), feel free to contact our applications engineering department.
